A1000 AC DRIVE

TECHNICAL SPECIFICATIONS:

  • Operating Range: 0 to 355 K.W.
  • O/p Operating Frequency: 0.01 to 400 Hz.
  • Input Voltage: 380-480 VAC, -15 % to + 10 %
  • Starting Torque: Upto 200 % for 60 Secs
  • Control Method: V/f Control, V/f Control with PG, Open Loop Vector Control,Closed Loop Vector Control with PG, Vector Control for PM, Advanced Open Loop Vector Control for PM, Closed Loop Vector Control for PM.

    SPECIAL FEATURES :

  • Braking Transistor Built In till 30 K.W.
  • Working Ambient Temperature: -10 to 50 deg C. without derating.
  • Last Ten Fault History for easy Troubleshooting.
  • Instant Setup of New drives using stored Backup.
  • Swing PWM function to decrease noise at low carrier frequencies.

---------------------------------------------------------------------------------------------------------------------------------------------------

V1000 AC DRIVE

TECHNICAL SPECIFICATIONS:

Operating Range: 0 to 18.5 K.W.
O/p Operating Frequency: 0.01 to 400 Hz.
Input Voltage: 380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 150 % for 60 Secs
Control Method: V/F Control, Open Loop Current Vector Control and PM Open Loop Vector for use with IPM / SPM
(Sine Wave PWM)

SPECIAL FEATURES:

  • Braking Transistor Built In till thru all the ratings.
  • Working Ambient Temperature: -10 to 50 deg C. without derating.
  • Last Ten Fault History for easy Troubleshooting.
  • Instant Setup of New drives using stored Backup.
  • Swing PWM function to decrease noise at low carrier frequencies
---------------------------------------------------------------------------------------------------------------------------------------------------

J1000 AC DRIVE

TECHNICAL SPECIFICATIONS:
Operating Range: 0 to 5.5 K.W.
O/p Operating Frequency: 0.01 to 400 Hz.
Input Voltage: 200---240 VAC/380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 150 % for 60 Secs
Control Method: V/F Control

SPECIAL FEATURES:

  • Braking Transistor Built In till thru all the ratings.
  • Working Ambient Temperature: -10 to 50 deg C. without derating.
  • Swing PWM function to decrease noise at low carrier frequencies
---------------------------------------------------------------------------------------------------------------------------------------------------

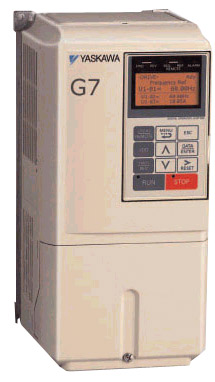

G7 AC DRIVE

TECHNICAL SPECIFICATIONS:

Operating Range: 0 to 300 K.W.
O/p Operating Frequency: 0.01 to 400 Hz.
Input Voltage: 380-480 VAC, -15 % to + 10 %
Starting Torque: Upto 220 % for 60 Secs
Control Method: Sinusoidal PWM with 3-level control, (flux vector control with pulse generator feedback; open loop vector control 1 and 2 V/f control, V/f control with pulse generator feedback)

SPECIAL FEATURES:

  • Braking Transistor Built In till 15 K.W.
  • Working Ambient Temperature: -10 to 45 deg C. without derating.
  • Suppression of Harmonic Distortion with patented 3 Level PWM flux Control
  • Large Alpha Numeric Display for Easy Parameter Settings
